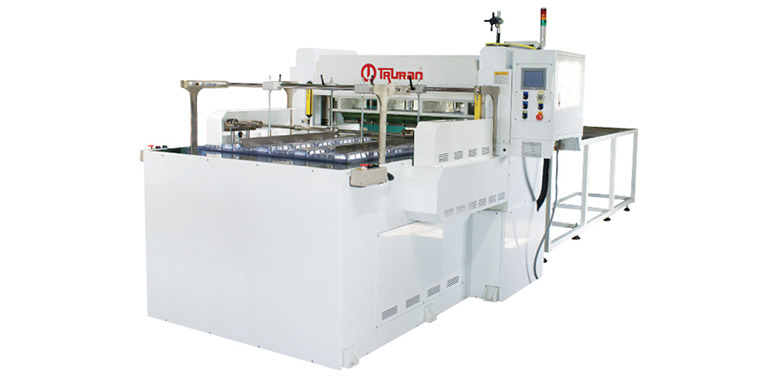

VAC-310 Multi-layer Automatic Feed Cutting Machine
VAC-310
Multi-layer Automatic Feed Cutting Machine
Electronic Catalog
Title Download Link
Multi-layer Automatic Feed Cutting Machine VAC-310 Multi-layer Automatic Feed Cutting Machine VAC-310
FEATURES
    Double-axle Synchronous Pressurizing Mechanism:
  • Performs the pressurization with double output axle to provide powerful and stabilized pressurizing capacity.
    Automatic Feed Mechanism:
  • Uses Servo control to carry out the setting according to the breadth and length of the material.
    Alignment Mold System:
  • Performs concurrent cutting process after locking the material in place.
    Parameter Storing System:
  • Performs module-based memory for the production figures to facilitate the parameter management.
    Cutting Plate Turntable Mechanism:
  • Sets the offset length to achieve over 95% of plate utilization rate after cutting.
    High-efficiency Boosting Circuit:
  • Reduces over 30% of power consumption as compared to conventional circuit.
APPLICABLE MATERIAL
    Vacuum molding materials, such as PS and PP, etc.
SPECIFICATIONS
MODEL VAC-310
Cutting Efficiency 15 times/per min
Voltage 70TONS
Air Pressure Requirement 0.5Mpa
Weight of Main Unit 3500kg
※We welcome custom-made orders for special request.
※We reserve the right to modify the specifications of any of the above listed machines without notice.
