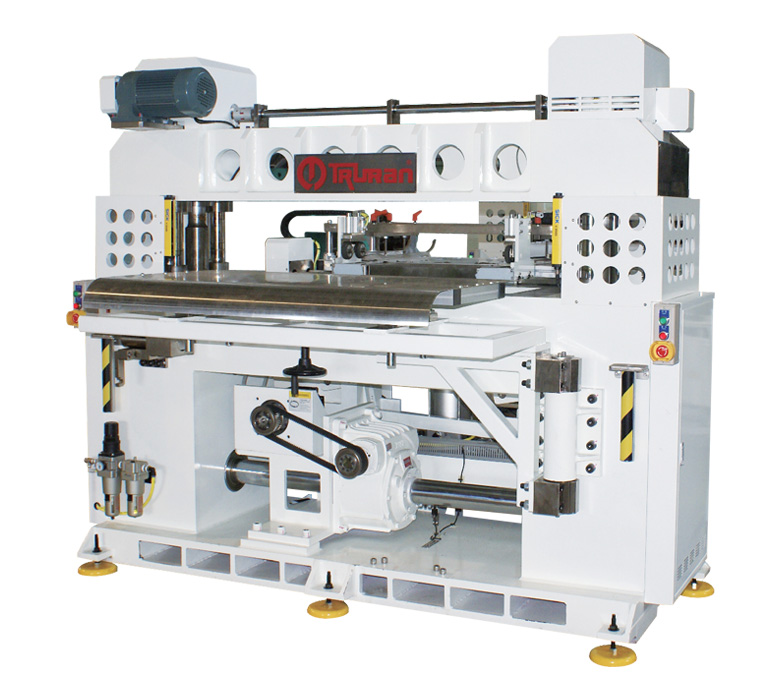

HSP-12 High-speed Steel Mold Cutter
HSP-12
High-speed Steel Mold Cutter
Electronic Catalog
Title Download Link
High-speed Steel Mold Cutter HSP-12 High-speed Steel Mold Cutter HSP-12
FEATURES
    Innovative Feed Mechanism:
  • in which, the Auto Up/Down Feed System is designed for the height of the molded material.
    Superb and stabilized Dead-Point accuracy:
  • for which the Dual-axle synchronized mechanical structure is designed to achieve higher Lower Dead Point stability.
    High-precision Depth Adjusting Mechanism:
  • which uses Left/Right Synchronized Fine-tune Unit to achieve 0.01mm of fine-tuning accuracy.
    Parameter saving function:
  • to name and store relevant parameters after being set.
    Molding Machine On-line function:
  • to carry out synchronized control with other molding machine through on-line operation.
    Automatic Lubrication Mechanism:
  • in which, the Automatic Lubrication Mechanism is designed to reduce the daily maintenance work.
APPLICABLE MATERIAL
    Various molding materials such as cup cover, bowl and food containers, etc.
SPECIFICATIONS
MODEL HSP-12
Maximum Width 1000mm
Cutting Efficiency 100SPM
Motor (HP) 220V 60Hz 3P
Air Pressure Requirement 0.5Mpa
Weight of Main Unit 2600kg
※We welcome custom-made orders for special request.
※We reserve the right to modify the specifications of any of the above listed machines without notice.
