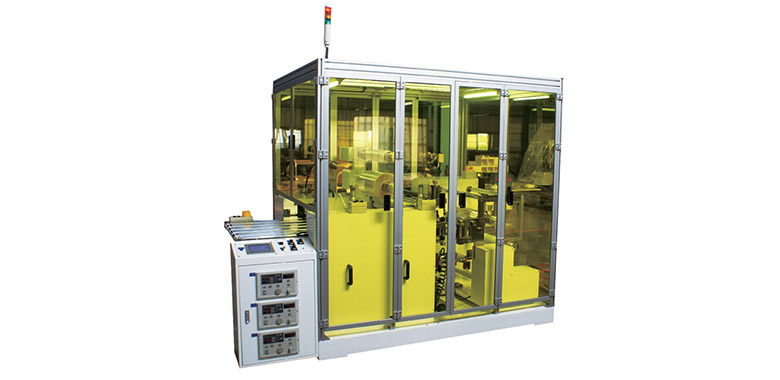

AFC-700LE
Multi-Axle Auto Film Bonding Machine
FEATURES
-
Patented Bonding Mechanism：
- in achieving higher bonding accuracy and without air bubbles.
-
Fully Automatic Tension Control System：
- The tension of materials for each axle is controlled in an automatic way.
-
Servo Transmission Control：
- Dual-Axle Servomotor is used to achieve synchronized alignment control.
-
Diversified Size Option：
- The parameter fine-tuning can be executed according to the characteristics of different materials.
-
High Clean Bonding Environment：
- which meet high-cleanliness bonding space requirements in providing higher Y-Rate.
-
Unique Material Handling Techniques：
- which is designed according to the characteristics of optical film to avoid scratching the material.
SPECIFICATIONS
| MODEL | ALM-700LE |
| Maximum Width | 700mm |
| Laminating | 50M/min CMax |
| Motor (HP) | 220V 60Hz 3P |
| Air Pressure Requirement | 0.5Mpa |
| Weight of Main Unit | 1500kg |
|
※We welcome custom-made orders for special request. ※We reserve the right to modify the specifications of any of the above listed machines without notice. |
|
