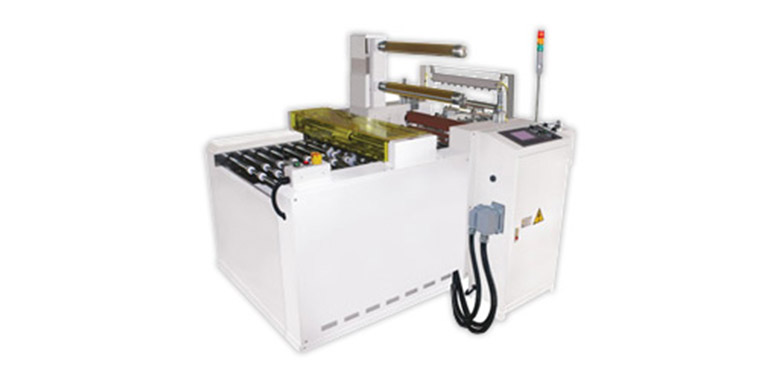

ALM-800
Auto Laminating Machine
FEATURES
-
Synchronized automatic glass handling mechanism to speed up operational efficiency.
-
Unique, special, patented pattern film laminating mechanism, to ensure no air bubbles after lamination process.
-
Automatic cutting and partitioning mechanism to cut and partition laminated work pieces.
-
Laminating length and speed can be programmed and adjusted to suit actual requirements.
-
Optional single-side or double-side protective films can be laminated to suit actual requirements.
-
With pattern paper recoil function to automatically recoil the pattern paper.
-
Compatible with glass automatic feeding and automatic material take-up system.
APPLICABLE MATERIAL
-
Specially designed for film laminating process of GLASS to ensure no air bubbles in finished products; with automatic cutting and partitioning operation to reduce the use of manpower, upgrade productivity and production stability.
SPECIFICATIONS
| MODEL | ALM-800 |
|
Dimensions of Machine L x W x H (mm) |
L 2110 x W 1510x H 1410 |
| Working Area L x W (mm) | 550mm x 550mm |
| Motor (HP) | 3-phase AC220V |
| Air Pressure Requirement | 0.5Mpa |
| Applicable Width of Material | 0.5-2mm |
| Weight of Main Unit | Approximately 700kg |
|
※We welcome custom-made orders for special request. ※We reserve the right to modify the specifications of any of the above listed machines without notice. |
|
